Dimension and weight of DEK03X solder paste printing machine

Transportation information specifications: Approximately 800kg after packaging (depending on randomly purchased options) 630kg bare metal (depending on randomly purchased options)

Approximately size 2060mm x 1500mm x 1550mm

The DEK 03X fully automatic solder paste printing machine has an advanced up/down K-view visual system, independent control and adjustment of lighting, high-speed moving lens, and precise alignment between PCB printed circuit boards and screen boards, thereby accurately applying solder paste or red glue to the printed circuit board according to the opening of the screen board,

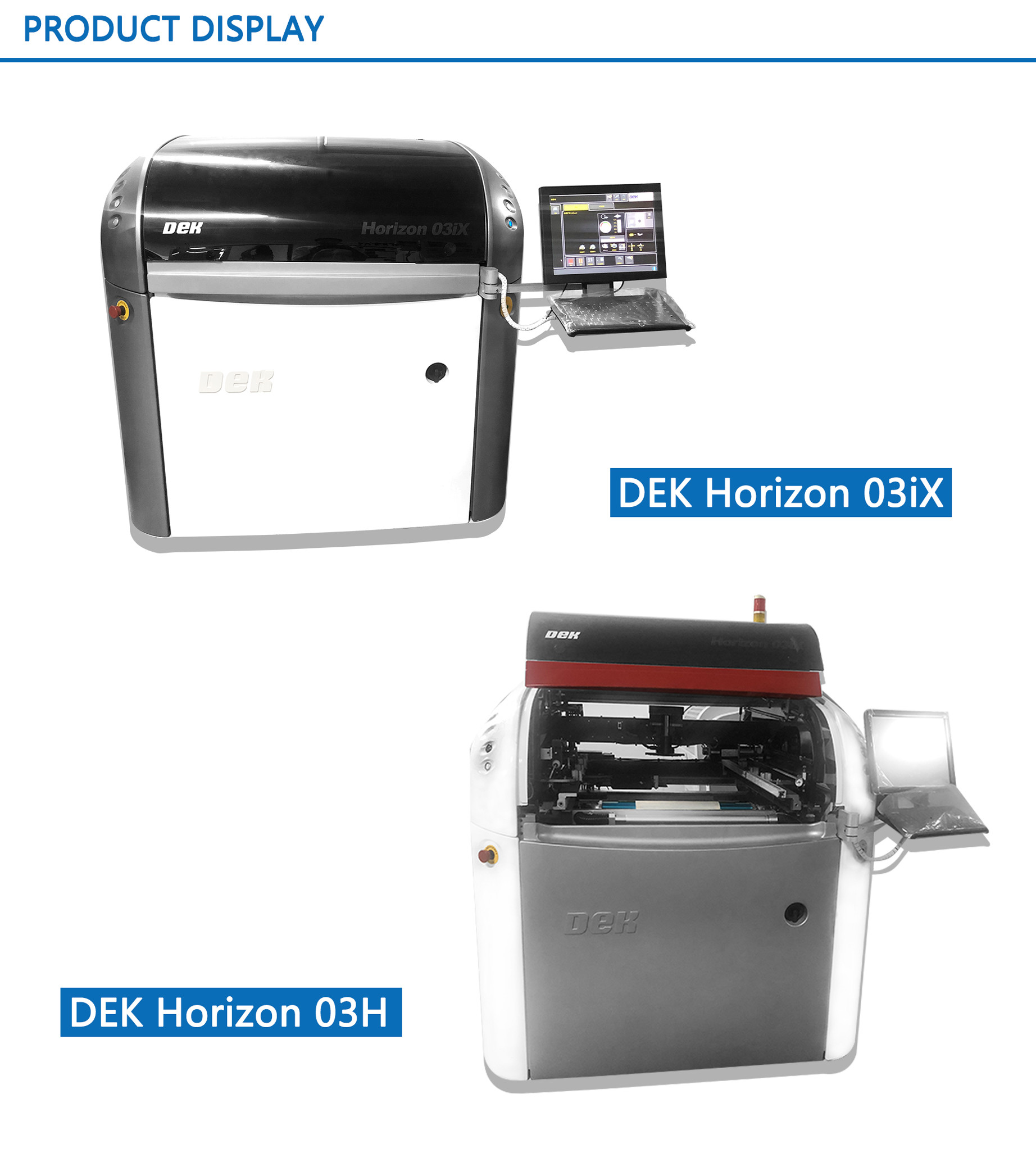

The DEK Horizon 03iX fully automatic solder paste printing machine ensures a printing accuracy of+25 microns and 6 Sigma high-precision servo motor drive and PC control, ensuring printing stability and precision, as well as image pattern recognition and repeated positioning accuracy. It is a police type printing head with a specially designed high rigidity structure. The scraper pressure, speed, and stroke are all controlled by computer servo to maintain uniform and stable printing quality; The scraper crossbeam has been specially optimized for a lightweight and aesthetically pleasing appearance.

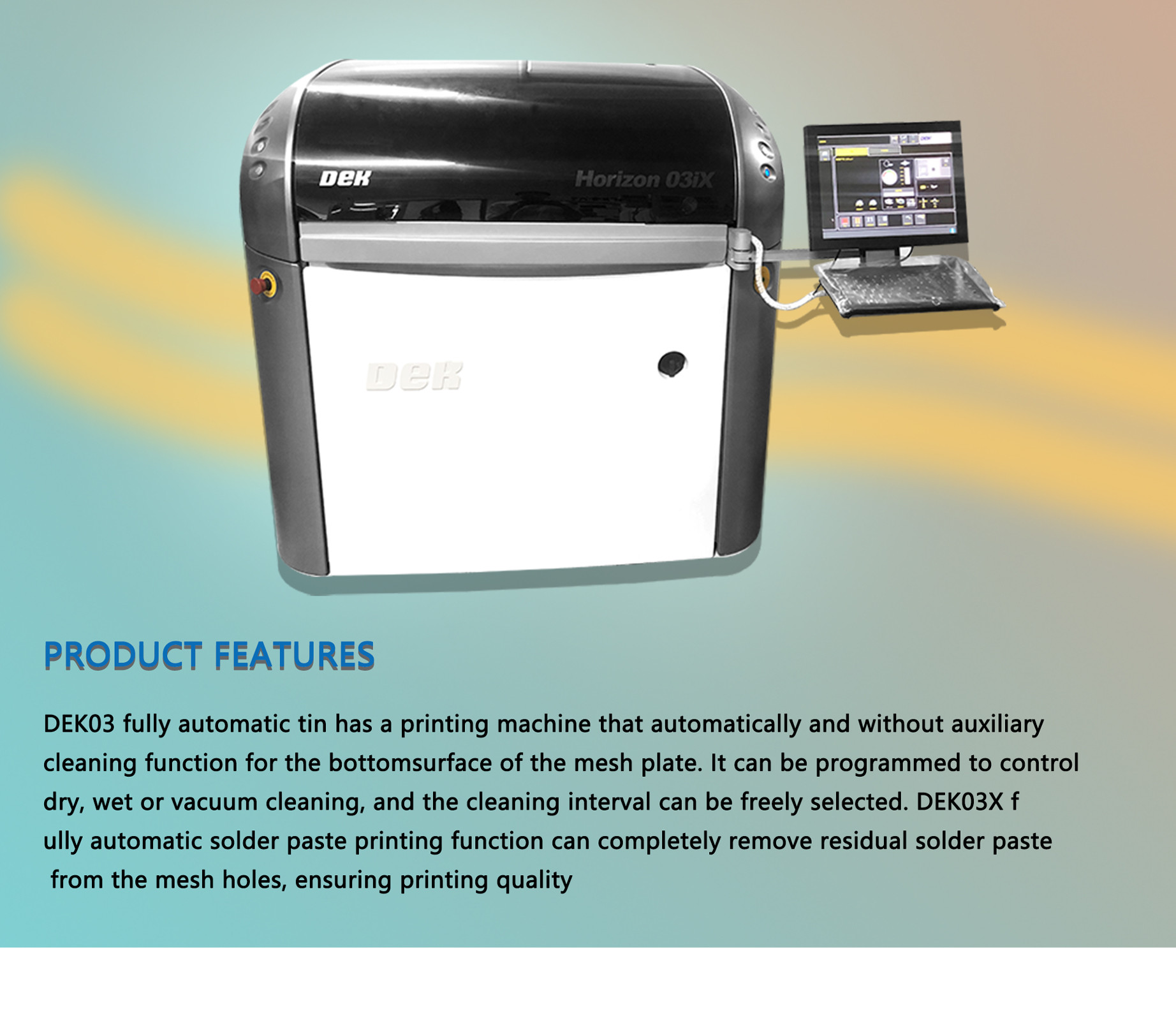

DEK03 fully automatic tin has printing machine automatic and non auxiliary screen bottom cleaning function, programmable control for dry, wet or vacuum cleaning, and free selection of cleaning intervals,

DEK03X fully automatic solder paste printing function completely removes residual solder paste from the mesh, ensuring printing quality.

The multifunctional board processing device of DEK03iX fully automatic solder paste printing machine can automatically position and clamp PCB boards of various sizes and thicknesses, with movable collision pins TM and edge clamping devices, effectively overcoming board deformation and ensuring uniform printing process.

The DEK Horizon 03iX fully automatic solder paste printing machine has an nstinctivwO operation interface and rich software functions,

The DEK03iX fully automatic solder paste printing machine has a good human-machine dialogue environment, which is simple and convenient to operate, easy to learn, and easy to use. It has the function of self diagnosis, sound and light alarm for faults, and prompt the cause of faults. Both single and double sided PCB printed circuit boards can be operated.
