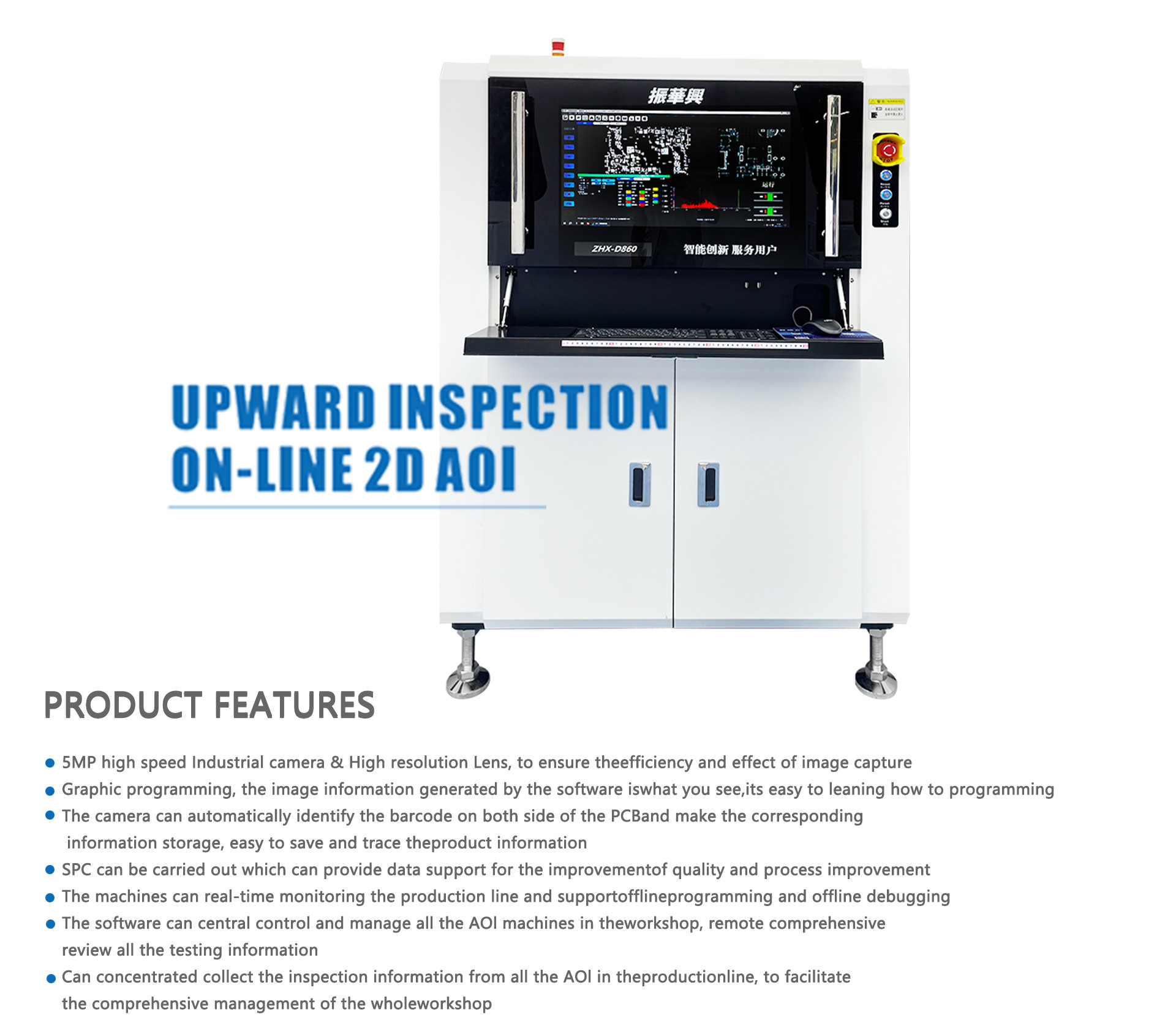

    On line AOI with Up and Down Inspection ZHX-D860

    其它参数

    Others

    外形尺寸(不含信号灯)1077x1243x1675mm1187x1419x1675mm

    重量

    Weight

    ~1250kg1360kg

    电源

    Power Supply

    交流220伏特±10%,频率50/60Hz,额定功率1800W

    AC220V±10%,single phase 50/60HZ,power consumption 1800W

    气源

    Air Supply

    0.5mpa,70cm3/min

    使用环境

    Working Environment

    温度10-40℃,湿度30-80%RH

    Temperature10-40℃,humidity 30-80% RH

    On line AOI with Up and Down Inspection ZHX-D860On line AOI with Up and Down Inspection ZHX-D860On line AOI with Up and Down Inspection ZHX-D860On line AOI with Up and Down Inspection ZHX-D860On line AOI with Up and Down Inspection ZHX-D860

    类别

    CATEGORY

    视觉识别系统

    Recognition System

    项目

    ITEM

    判别方法

    Inspection

    TB820 TB820L

    矢量分析算法,集成逻辑或运算,双边亮度边界距离,元件本体跟踪,OCV,亮度模板匹配,颜色距离,颜色抽取

    (RGB &HSV),亮度极差,亮度偏差,亮度变化最小跨度等三十余种演算法

    color extraction (RGB&HSV),value-range of luminance,offset of luminance,the minimum variation span of luminance,etc...More than 30 kinds of the most

    advanced algorithms.

    相机

    Camera

    标配上下500万像素,可选配任意一面1200万像素或双面1200万像素

    Standard top and bot 5MP,optional either side 12MP or 12MP on both sides

    镜头

    Lens

    高分辨率工业镜头

    High-resolution Industrial telecentric Lens

    分辨率

    Resolution

    标配20μm,可选配25μm(高景深时应用),15μm,12μm(建议1200万像素时选用)

    Standard 20um,optional 25um (high depth of field application),15um,12um(recommended for 12MP)

    FOV48.96*40.96 mm(5MP & 20μm);36.72*30.72 mm(5MP & 15μm);50*45mm(12MP & 15μm); 40*30mm (12MP & 10μm)

    光源

    Lamp-house

    环形塔状架构,超亮红绿蓝白四色LED频闪光源

    Ring tower structure,highintensity RGBW flash lighting

    每画面处理时间

    Per-image Time

    220~450ms

    检测内容

    Inspection Capability

    缺件,偏移,歪斜,立碑,侧立,翻件,极性反,错件,破损少锡,断路,污染

    Missing,misaligned,skewed,tombstone,billboard,overturned,polarity,wrong,damaged,insufficient,pasting open,stain

    01005 & 0.3mm pitch

    可检测最小元件及间距

    Inspection Items

    PCB传送系统

    PCB Conveyor

    基板固定方式:bottom-up固定,自动进出板和自动宽度调整系统,进板方向可一键切换,符合SMEMA标准.

    轨道高度900±20mm(可选配750±20mm)

    The conveyor height:900±200mm (750±20mm for option)
