    Samsung SM471plus, SM421S, SM411, SM321 Pick And Place Machine

    Ask Lasest Price
    Brand Name : Samsung SM411 pick and place machine
    Model Number : Samsung SM411
    Certification : opp
    Delivery Time : 10
    Supply Ability : daily
    • Product Details
    • Company Profile

    Samsung SM471plus, SM421S, SM411, SM321 Pick And Place Machine

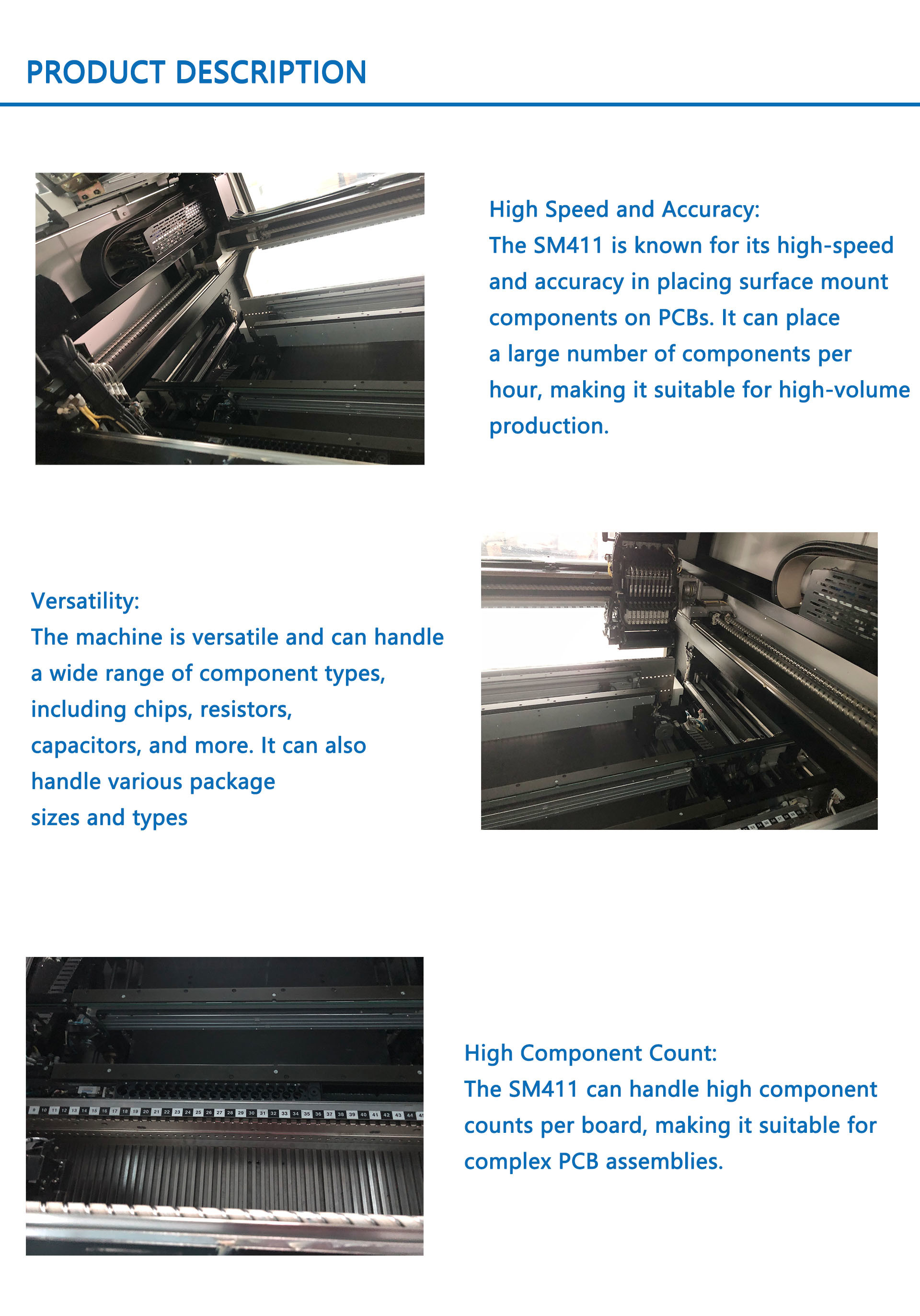

    Product Description:

    SMT Pick Place Machine

    The Samsung SM411 SMT Pick Place Machine is a high-speed, high-accuracy automatic machine with a size of L1400mm X W1400mm X H1400mm. It has a maximum mounting speed of 6000CPH and can handle components of up to 25mm in height. With its fast installation speed of up to 42k CPH (IPC9850), it offers high precision and ultimate reliability when it comes to placement accuracy and speed.

    Features:

    • Product Name: SMT Pick Place Machine
    • Power Supply: AC220V/50HZ
    • Installation Speed: Chip 42k CPH (IPC9850)
    • Mounting Speed: 6000CPH
    • PCB Thickness: 0.4mm-3.0mm
    • Number of Nozzles: 8
    • Easy Setup and Changeover

    Technical Parameters:

    ParameterValue
    PCB Thickness0.38mm~4.2mm
    Machine SizeL1650×1690×1535mm
    Mounting Speed6000CPH
    Components HeightMax. 25mm
    Control SystemPLC
    Components Size0402-5050
    Number of Nozzles8
    Number of Heads2
    TypeAutomatic
    Weight1820kg
    Vision SystemYes
    Installation SpeedChip 42k CPH (IPC9850)

    Samsung SM471plus, SM421S, SM411, SM321 Pick And Place Machine

    Applications:

    SMT Pick Place Machine

    Samsung SM411 pick and place machine is an ideal pick and place machine for SMT production lines. It is equipped with a high-precision vision system and has a high precision of Chip/IC±50m(Cpk1.0), a fast speed of 0.086Sec/Chip, and a reliable performance. The SM411 pick and place machine has a strong power supply of AC220V/50HZ, and a weight of 1820KG. It is certified with OPP and available in a minimum order quantity of 2 with a wooden box packaging. Delivery time is within 10 days and supply ability is daily. This pick and place machine is suitable for high accuracy, high speed and high-efficiency production.

    Samsung SM471plus, SM421S, SM411, SM321 Pick And Place Machine

    Customization:

    SMT Pick Place Machine - Samsung SM411

    Brand Name: Samsung SM411 pick and place machine
    Model Number: Samsung SM411
    Place of Origin: China
    Certification: opp
    Minimum Order Quantity: 2
    Packaging Details: wooden box
    Delivery Time: 10
    Supply Ability: daily
    Product Name: SMT Pick Place Machine
    Accuracy: ±0.02mm
    PCB Size: Max. L50×40mm~510×460mm
    Type: Automatic
    Air Pressure: 0.5 ~ 0.7MPa(5.1 ~ 7.1kgf/cm2)

    High Speed and Accuracy

    Samsung SM411 pick and place machine offers the highest speed and accuracy to help you to keep up with the ever-evolving electronic industry. It comes with a vision system to ensure that all components are placed accurately.

    Automatic Operation

    This SMT pick and place machine from Samsung is completely automatic, allowing you to quickly and easily place components. It also features an adjustable air pressure system to ensure that components are placed with precision.

    Support and Services:

    SMT Pick Place Machine Technical Support & Service

    We offer a wide range of technical support and service for our SMT Pick Place machines. Our team is comprised of experienced professionals who are knowledgeable in the latest technologies and trends related to SMT Pick Place machines. Our team is here to help you maximize the performance of your SMT Pick Place machine and ensure its longevity.

    We provide the following services:

    • Installation and setup assistance
    • Troubleshooting and diagnostics
    • Regular maintenance and servicing
    • Software updates
    • Parts replacement
    • On-site training

    If you have any questions or need assistance with your SMT Pick Place machine, please do not hesitate to contact us. We are dedicated to providing you with the best customer service and support possible.


    Packaging and transportation:

    The SMT mounting machine is packaged in its original packaging and shipped in a safe box. Then transport the wooden boxes in a padded box to protect the contents. Then, the filled box is delivered to the customer's address.

    Samsung SM471plus, SM421S, SM411, SM321 Pick And Place Machine


    Samsung SM411 mounting machine parameters:

    Installation speed: Chip 42k CPH (IPC9850)

    Corresponding component: MAX.0402-14mm (component height: H=12mm)

    Installation accuracy: Chip/IC ± 50m (Cpk1.0)

    Corresponding PCB: L510 * W250 * 2LANE (standard) L510 * W460 * 1LANE (standard)/Max. L610 * W460 * 1LANE

    Theoretical Speed of SMT: 0.086Sec/Chip

    Mount Head: 6 * 2 IPC9850 1608CHIP: CPH 42000 IPC9850 SOP: CPH 30000

    Placement accuracy: ± 0.05 μ M @ 3 б/ Chip

    Scope of mounting components/Applicable part: 0603 (0201)~□ 14mm Chip, SOP, QFP, BGA

    Minimum Pin Spacing (QFP) Minimum Ball Spacing (QFP) 0.5mm (BGA)/0.65mm (BGA) Max. H=12mm

    PCB size for mounting/PCB size: L50 × 40mm~510 × 460mm

    Thickness of applied PCB: 0.38mm~4.2mm

    External dimensions/Machine Dimensions: 1650 × one thousand six hundred and ninety × 1535mm

    Power Consumption: AC200/208/220/240/380/415 V (50/60Hz, 3Phase) Max. 5.0kVA

    Gas consumption: 0.5~0.7MPa (5.1~7.1kgf/cm2)

    Weight: 1820kg

    Operating System/OS: Korean, Chinese, English/Korean Chinese English


    Samsung SM471plus, SM421S, SM411, SM321 Pick And Place MachineSamsung SM471plus, SM421S, SM411, SM321 Pick And Place Machine

    FAQ:

    Q: What is Samsung SM411 Pick and Place Machine?
    A: The Samsung SM411 Pick and Place Machine is an automated machine designed to quickly and accurately place components on printed circuit boards.
    Q: What is the model number of Samsung SM411 Pick and Place Machine?
    A: The model number of Samsung SM411 Pick and Place Machine is Samsung SM411.
    Q: Where is Samsung SM411 Pick and Place Machine made?
    A: Samsung SM411 Pick and Place Machine is made in China.
    Q: What is the minimum order quantity for Samsung SM411 Pick and Place Machine?
    A: The minimum order quantity for Samsung SM411 Pick and Place Machine is 2.
    Q: How is Samsung SM411 Pick and Place Machine packaged?
    A: Samsung SM411 Pick and Place Machine is packaged in wooden boxes.
