Hanwha Samsung SM482 PLUS SMT Smd Production Line Anti Static​

Samsung/Hanwha SM482/PLUS SMT Assembly line

Samsung/Hanwha SM482/PLUS SMT Assembly line is a high speed smt production line, we both provide your new and used SMT samsung sm482 pick and place machine assembly line.

Both new and used machines work well, and the solder paste printer is automatic printer, China brand full automatic stencil printers, we also have DEK MPM foreigh brand printer for you , reflow oven is our own brand new , also have heller and other brands for you choose.

SMT production line workshop planning solution analysis

Workshop requirements are considered to meet the following requirements:
a, anti-static requirements on the ground, (the epoxy floor is still PVC, check the information yourself, the PVC is more beautiful and durable);
b. Consider the ground load-bearing requirements according to the equipment requirements (primarily solder paste printing equipment, ask equipment manufacturers and plant planners);
c. Satisfied with the requirements of temperature and humidity control in the SMT workshop, the ceiling can be treated accordingly to reduce the cost of cooling air. (generally 3.0 m, pay attention to whether the warehouse is in demand);
d. The power/gas demand of the equipment (air/nitrogen), waste gas treatment, etc. And pipeline raw materials/direction. Reserve space, etc. Equipment ventilation requirements;
e. To meet the lighting requirements, whether to use energy-saving lamps, such as T5 instead of T8. At least 300LUX;
f. Fire-fighting requirements, there should be compartments, consider fire-fighting.

2. Planned SMT production line equipment
The plan is to newly install two identical SMT production lines, supplementing: solder paste printer / placement machine / reflow oven.
The maximum width of the equipment in the production line is 2.0 meters, and the total length of all equipment is 17 meters. Consider the subsequent planning and add a production line (the line body equipment is similar).
a. SMT equipment should avoid the uprights and maintain a certain interval from them. The interval is for the equipment to pass through at least one feeder car after it is loaded with materials;
b. The outer frame of SMT equipment should be distinguished by zebra crossing. The distance between the zebra crossing and the equipment is that the equipment shall extend more than 50 cm after the equipment is loaded with materials;
c. The best distance between the two production lines is 1.2 meters or more between the outer frames;
d. An inspection and repair area is generally planned at the end of the line, and quality inspectors can conduct random inspections at the end of the line.
Based on the above considerations, the length of each production line should be at least 17 meters (regardless of the condition of the line head aisle and the line end kanban area), and the width should be more than 3 meters (the placement machine has two-sided materials).

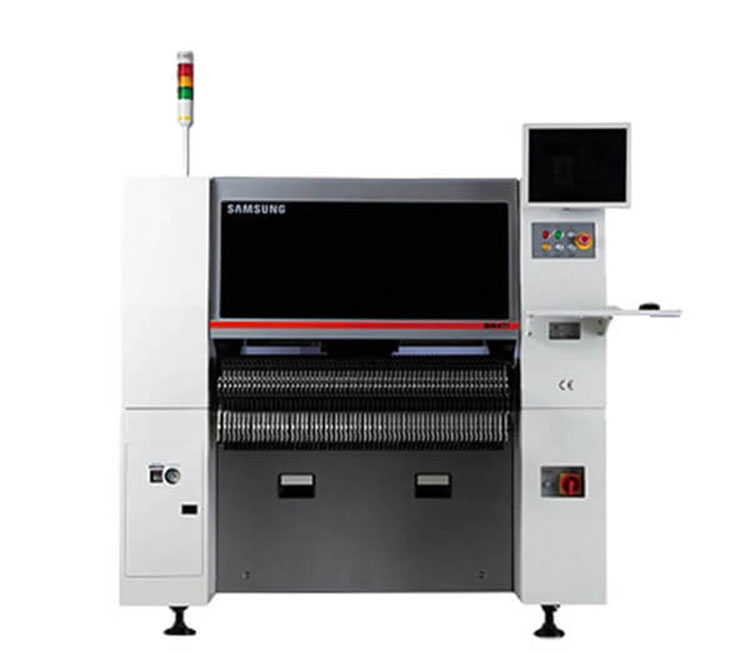

Samsung /HANWHA SM482 plus PICK pick and place machine specifications:

Hanwha Mounter SM482 Plus

PCB size: 460(L) x 400(W)
The smallest element: 01005 ~ 55mm (H 15mm)
Feida station: 120ea/112ea
Mounting speed: 30,000 CPH
Product overview: Hanwha placement machine SM482 Plus, PCB size: 460(L) x 400(W), smallest component: 01005 ~ 55mm(H 15mm), feeder station: 120ea/112ea, placement speed: 30,000 CPH, Weight: 1600KG.

High speed SMT Stencil Printers:

CNSMT-A5 MODEL

Humanized design

● Wide application range and strong versatility

● Unique spray type automatic cleaning system

● Energy-saving wiping and saving paper structure

● Unique image processing system

● Intelligent printing production mode

● Printing range: 400*340mm/510*340mm

● Adopt international universal UVW three-axis linkage platform

● Machine size: 1220X1355X1500mm

● Machine options: dynamic tinning functionautomatic stencil hole blocking detection functionautomatic glue dispensing functionsqueegee pressure feedback functionauto MSE/SPI online functionautomatic temperature and humidity function

High Quality China Brand CNSMT Reflow oven- TSM800

CNSMT started in 2010, focusing on providing  SMT full line equipment solutions for electronics manufacturing companies. In recent years,

We have expanded the overall solution for the intelligent manufacturing of 3C and 5G manufacturing enterprises, and at the same time can provide high-end materials and tools for electronic manufacturing enterprises and glass manufacturing enterprises.

We always adhere to the model of the casting industry of "guide the market with technology, shape the brand with quality, and strive for excellence", adhering to the service concept of "professional management, honest service, and customer first", and become a world-renowned international brand enterprise.

CNSMT leases and sells about 600 new SMT/AI equipment annually, mainly engaged in Panasonic placement machines, Samsung placement machines, JUKI placement machines, YAMAHA placement machines, Mirea placement machines, Sony placement machines, and Fuji placement machines. , Siemens placement machines, LED placement machines and other new and second-hand high-end overseas brand equipment, as well as new domestic independent outstanding brands, including automatic printing machines, SPI, placement machines, AOI, reflow soldering, plug-in machines and other major equipment. It is one of the world's largest suppliers of new electronic manufacturing equipment.

Among them, CNSMT is mainly based on automatic printing machines, SPI, placement machines, AOI, reflow soldering, plug-in machines, dispensers, spraying machines, X-ray, FPC laser cutting machines and SMT supporting equipment; among them, placement machines And some high-end equipment are foreign brands, and other equipment are mainly CNSMT independent brands and domestic brands.

CNSMT has become the industry's first high-quality SMT equipment integration supplier and the first choice of electronics manufacturing companies.

CNSMT upholds the enterprise spirit of "confidence, dedication, collaboration, and innovation". After nearly 20 years of continuous hard work, forge ahead, and continuous innovation,

We have become one of the most influential and well-known word-of-mouth companies and conscientious companies in the SMT industry. Relying on more than 30 years of technical experience in the SMT industry and more than 15 years of company customer service cases; relying on a one-stop equipment inventory and resource integration platform, and a complete after-sales service system; wholeheartedly providing a one-stop service for electronics manufacturing companies Equipment sales and leasing services.
