CN500 Offline AOI Optical Inspection Machine AC Serve 22 Inch TFT

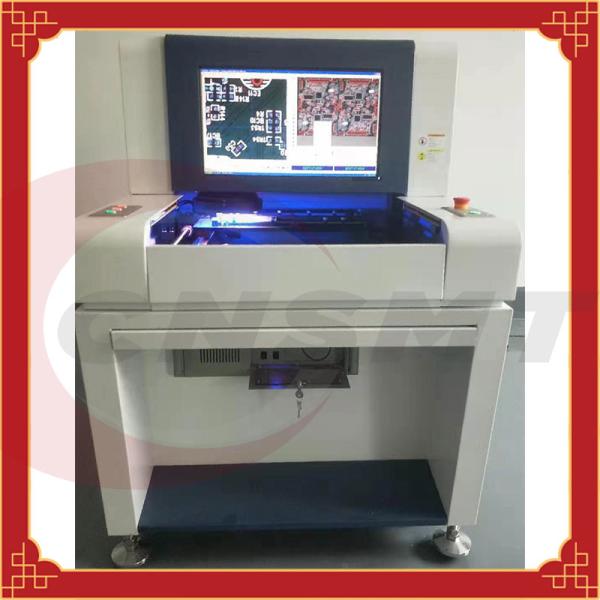

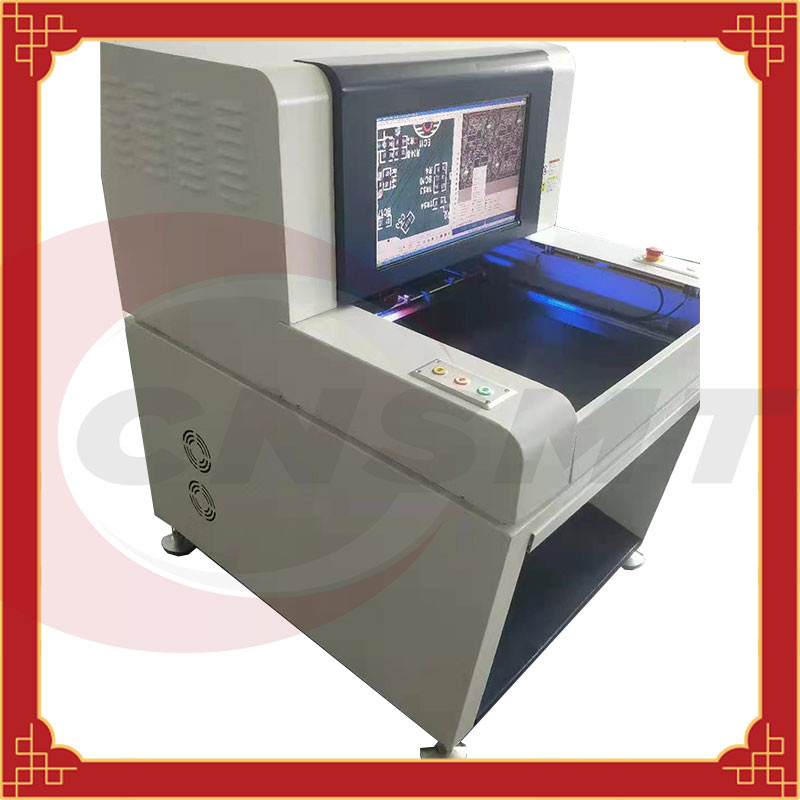

Offline AOI CN500 Automated Optical Inspection Machine

When it comes to smart machines that will improve the SMT assembly, you can only trust CNSMT, an SMT supplier that is trusted and well recognized in Shenzhen China.

CNSMT is a leading supplier company with a 10-year strong and solid experience in helping our SMT companies around the world by providing the most advanced and smartest machines to improve production.

One of the most viable solutions in improving SMT production is the OFFLINE AOI CN500 Automated Optical Inspection Machine. An AOI machine or also referred to as Machine Vision cameras are the ones helping your assembly to achieve 100% quality every single time.

In order to avoid affecting the normal use of this OFFLINE AOI CN500 equipment due to external factors, please observe the following:

• The use environment of this OFFLINE AOI CN500 equipment:

The ambient temperature of the equipment is: 10～35℃, and the relative humidity is: 35～80℃

The OFFLINE AOI CN500 equipment should be placed in a place where it will not be exposed to direct sunlight, will not condense water, and will not splash water, oil and other chemical liquids.

• When the OFFLINE AOI CN500 equipment is in normal use, please reserve a certain space before and after the equipment to facilitate the maintenance of the machine and the exhaust of internal heat.

Also do not put on objects such as hoods during the normal use of the machine, so as not to affect the heat of the device itself.

• When the OFFLINE AOI CN500 equipment is suspended, please keep the equipment in the following places:

Ambient temperature: 0～40℃ Relative humidity: 35～80℃

Places where there is no direct sunlight, no condensation, no splashing of water, oil and other chemical liquids

In order to prevent dust, you can consider taking covering measures, such as covering the dust cover we give away.

• Do not subject the OFFLINE AOI CN500 equipment to impact or strong vibration, otherwise it may cause malfunctions.

• When cutting off the power supply of the equipment, please follow the following sequence to exit/shut down the system. If you don’t execute this process, go directly

• Cutting off or restarting the power will prevent the data from being preserved intact, and it may also cause damage to the hard disk.

The correct exit steps are as follows:

Quit the application → Quit Windows → Cut off the power

• When the OFFLINE AOI CN500 equipment is running, please do not open the front cover of the equipment to avoid accidents.

• Repeated power ON (open)/OFF (cut off) will be the cause of the machine's host failure. After the power is turned off,

Please turn on the power again after 20 seconds.

• In order to avoid damage to the PCB board or equipment to be tested, please use the inspection target substrate that meets the specifications and dimensions of the equipment.

Note that the requirements of this OFFLINE AOI CN500 equipment on the height of the parts on the PCB are:

The height of the front part on the test surface of the PCB board ≤ 25mm The height of the back part on the test surface of the PCB board ≤ 50mm

Points of safety

In order to use this OFFLINE AOI CN500 equipment safely, please observe the following:

⒈When adding lubricating grease for maintenance, please cut off the power supply.

⒉Please connect to the power supply according to the standard on the OFFLINE AOI CN500 equipment nameplate. If it does not match, please contact our company's after-sales service department.

⒊When installing the industrial computer of the OFFLINE AOI CN500 equipment, be sure to connect each interface firmly and not loose.

⒋When inserting the head into the test platform, please pay attention to the upper frame.

⒌When moving the industrial computer or other parts on the equipment, please cut off the power supply first, and connect the wiring that connects the removed part to the equipment Unplug.

⒍Please do not put your hands or other objects in the OFFLINE AOI CN500 equipment when it is running.

⒎Guarantee the safety grounding of the OFFLINE AOI CN500 equipment and the access of the anti-static wire. Remember that the ground wire and the anti-static wire should not be confused.

⒏When opening the front cover of the machine, please handle it gently to avoid damage to the display.

⒐Please ensure that the rear door and front flap of the device are closed when the equipment is running

Technical parameters

Keywords:

SMT AOI, OFFLINE AOI, Automated optical inspection machine,automatic AOI, PCB inspection machine, economy AOI ,

Related products:

What it does & Why you should invest on it:

Improve your production line and achieve zero defects with the OFFLINE AOI CN500 Automated Optical Inspection Machine.

What it does is it monitors your PCB boards using visual methods that are far greater in terms of efficacy as compared to doing it manually. It is faster with high accuracy and can prevent major future problems that can start from minimal issues that can be detected from your circuit boards.

Having this kind of technology in your assembly line will ensure 100% top quality of your PCB boards that will prevent electronic issues.

Companies working on circuit boards understand the need for a good OFFLINE AOI CN500 Automated Optical Inspection Machine due to the fact that modern circuit boards require more effort than the ones made years ago.

Modern circuit boards are less compact and come with more soldered joints, wherein missing one can definitely affect the entire performance of the PCB board.

That being said, manual inspection can also be very time consuming and almost impossible to perfect, if you are looking at thousands of soldered joints on one circuit board.

Investing on OFFLINE AOI CN500 Automated Optical Inspection Machines will increase your production’s demand especially from companies that will require PCBs for modern appliances and other electronics.

Here at CNSMT, we guarantee you that you will always find what you are looking for when it comes to your SMT needs, especially the OFFLINE AOI CN500 Automated Optical Inspection Machine.

If you are not yet sure about the optical inspection machines, please see the different information below that might help you in your buying decision.

Certification:

Shippment and delivery:

Frequently Asked Questions:

Question: Is the OFFLINE AOI CN500 Automated Optical Inspection Machine easy to use?

Answer: In general, yes. Once you have placed your “golden board”, which is the basis of your inspection, you should be good to go. The machine is fully automatic and controls are done using a software. You will be provided with a user manual too, for your reference.

Otherwise, you can always visit our showroom for a demo from our professional engineers or you can also request for a video call, so we can show you how it works.

Let us know what works for you, so we can arrange it.

Question: What happens if the software gets corrupted or something? Will there be an available replacement from your part?

Answer: If you will be needing any help in the future, please send us an email and we will surely help you find the solution to your problem.

Question: Do you have a minimum order quantity for an OFFLINE AOI CN500 Automated Optical Inspection Machine?

Answer: No we don’t. You can place an order for one machine and we will be more than glad to process your order and deliver it to you.

Question: How do I place an order for an Automated Optical Inspection Machine from your company?

Answer: If you are ready to place an order for the OFFLINE AOI CN500 Automated Optical Inspection Machine, please send us the following information:

• Your name
• Company name
• Shipping address
• Machine model

Once we receive that, we will work on your order confirmation and send it to you. You may review the order confirmation and let us know if you have questions. If none, we will await your payment so that we can pack your order and send it to you.

Shipping will normally take 10 working days. A tracking number will be provided so you can also monitor the movement of your shipping.

Question: Is there a warranty for this type of machine?

Answer: Yes! All orders from CNSMT is covered and protected by a warranty. The coverage and details of your warranty will be provided in your order confirmation which you may review prior to sending payment.

Question: How do you pack orders for machines as fragile as the OFFLINE AOI CN500 Automated Optical Inspection Machine?

Answer: We make sure that your AOI machine is well packed and protected in a hard wood crate or box. You can choose the actual packaging to use. It will be well wrapped in a bubble wrap with extra layers of protection to make sure that your machine will reach you in good and undamaged quality.

Question: I want the machines to be delivered to my customer. Can you do drop shipping?

Answer: Yes. We process drop shipping on a regular basis. We will keep all of our information away from the packaging, to protect the integrity of your company.

Question: We will be ordering more than one OFFLINE AOI CN500 Automated Optical Inspection Machine. Can you give us a better pricing for this?

Answer: Yes! We can adjust the pricing for you if you will be ordering more than one machine. We will give you a discounted scheme depending on the number of machines you wish to order.

These are the information that you might want to check to help you make a better buying decision. If you cannot find the information that you are looking for, let us know so that we can answer it for you.

Here at CNSMT, we guarantee you that you will always be in good hands when it comes to all of your SMT needs. We will surely find a solution to all of your requirements.
