220v Yamaha Feeder Pneumatic Calibration Jig 12 Inch Display

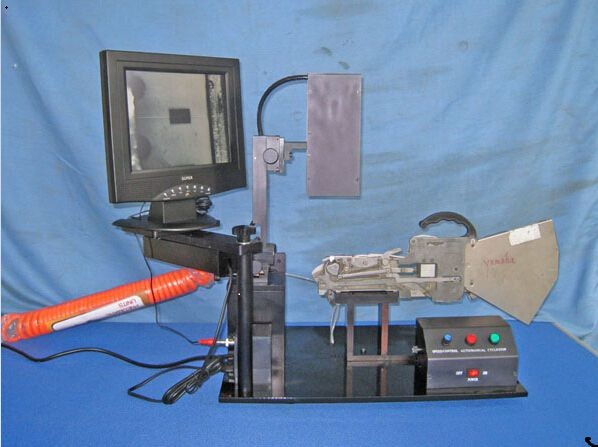

YAMAHA CL FEEDER Calibration JIG-CNSMT

Product Description

YAMAHA CL FEEDER Calibration Tool is used for calibrate SMT yamaha mechanic feeders, such as CL8MM/12MM/16MM/24MM/32MM/44MM/56MM, FT/FS/FV 8-88MM FEEDER,

So if you have these models YAMAHA feeders, you must need a this device for calibrate your feeders, as most of the yamaha cl feeder need to maintance or calibrate after using one or two months. in order to keep the feeder good precision, you have to buy a yamaha feeder calibration tool.

If you have a this device, you dont need to pay additional charge to outside suppliers, you can operate it easily and calibrate your feeders anytime.

It will greatly save your time and money.

If you are the first time use this YAMAHA FEEDER calibration tool, we can send you some vedios and manuals, it just spend few minutes to learn it.

Ask us a quote immediately if you are intesting in it!

Feathers:

1. The structure of the whole machine is simplified, the operation is simple, and the function is optimized. And use high-precision gears to ensure position stability and greatly improve work efficiency.

2. Accuracy testing. The position, height, and height of the pressing rod can be accurately measured. Can better grasp the quality status.

3. Adopting color LED display screen, LED lamp lighting, 50 times magnification CCD camera, making the structure more compact and beautiful. Effectively reduce eye fatigue and improve the quality of work.

4. It is easy to operate, and can simulate the placement machine, automatically and continuously observe the picking position, which can more clearly grasp the continuous running quality of FEEDER, so as to more effectively control the throwing rate.

Functions and features:

1. X-Y-Z axis adjustment;
2. Axis camera that can be directly adjusted;
3. Built-in 220V DC/110v power supply;
4. Cross cursor with scale;
5. Auto and step function;
6. LED display;
7. Feeder control fixture;
8. 8*2mm/12*4mm/16*8mm and 24*8mm feeder control belt.

Purpose: FEEDER calibration instrument is used to calibrate the model FEEDER

What YAMAHA FEEDER calibration tool models we have?

• YAMAHA Mechanic feeder calibration tool for yv/yg serials machines
• YAMAHA electric feeder calibration tool for YS serials machines

Related products:

• YAMAHA FEEDER calibration tool
• JUKI FEEDER calibration tool
• FUJI NXT FEEDER calibration tool
• Samsung SM FEEDER calibration JIG
• CM/NPM FEEDER calibration tool
• Ipulse FEEDER calibration jig
