Solder Paste SMT Stencil Printer Full Automatic 900mm/S 400*340mmm

Full Automatic Stencil Printer-A5

Automatic Stencil Printer

CNSMT is a realiable and most trusted supplier of SMT solder paste printer machine in Shenzhen, China. We carry almost every requirement of an SMT company, and we provide a wide array of options to choose from.

One of the most in demand item from our SMT line of products is the Automatic Stencil Printer. If you are looking for quality and best price, look no further, because we have it in stock for you and ready to be delivered.

What is SMT Stencil Printing machine?

As the word implies, stencil printing is about transferring the image onto a plain material, just like silk printing when ink is applied onto the silk screen, and a squeegee is used to swipe the ink that will pass through the silk with a stencil, blocking off the spaces where ink should not pass through and be printed onto the fabric.

In an SMT production, it uses the same application, only that the materials used are the solder paste and a PCB. The PCB will be using a stencil to block off areas where the solder paste should not go through. Solder paste is applied to the PCB through the apertures using a selected stencil.

Solder paste printing is the most vital or important process in a PCB assembly. Therefore, every SMT factory should be able to do it right. There are different types of stencils for SMT solder paste printing. Each are distinguised by their unique features, and it is important for a company to determine which is the best stencil printing machine should be used.

Solder paste printing should be done in huge volume, especially if you have a target quota. If that is the case, you should be considering the Automatic Stencil Printer, because as the word implies – this type of printer can work faster and produce uniform results all the time.

What is an Automatic Stencil Stencil Printer?

An Automatic Stencil Printer are equipped with easy controls that will automate the entire system. It also comes with an automatic squeegee and a power frame lift that will boost better yields or outputs. With this kind of technology, it is no doubt that the entire PCB assembly will be faster and easier and not to mention more economical.

Benefits of Having An Automated Printer

• It will help in achieving better and more uniform results.
• It will boost number of outcomes or yields.
• It will eliminate reprocessing that can happen when there is human handling.
• It will improve time management in your SMT assembly.

There are actually so many reasons for you to consider an automated stencil printer. But to summarize it in one sentence; an automated stencil printer will help improve your production in terms of speed, precision, and automation.

To know more about the automated stencil printer that we offer, please see the information below that shows the frequently asked questions by our customers together with our answers.

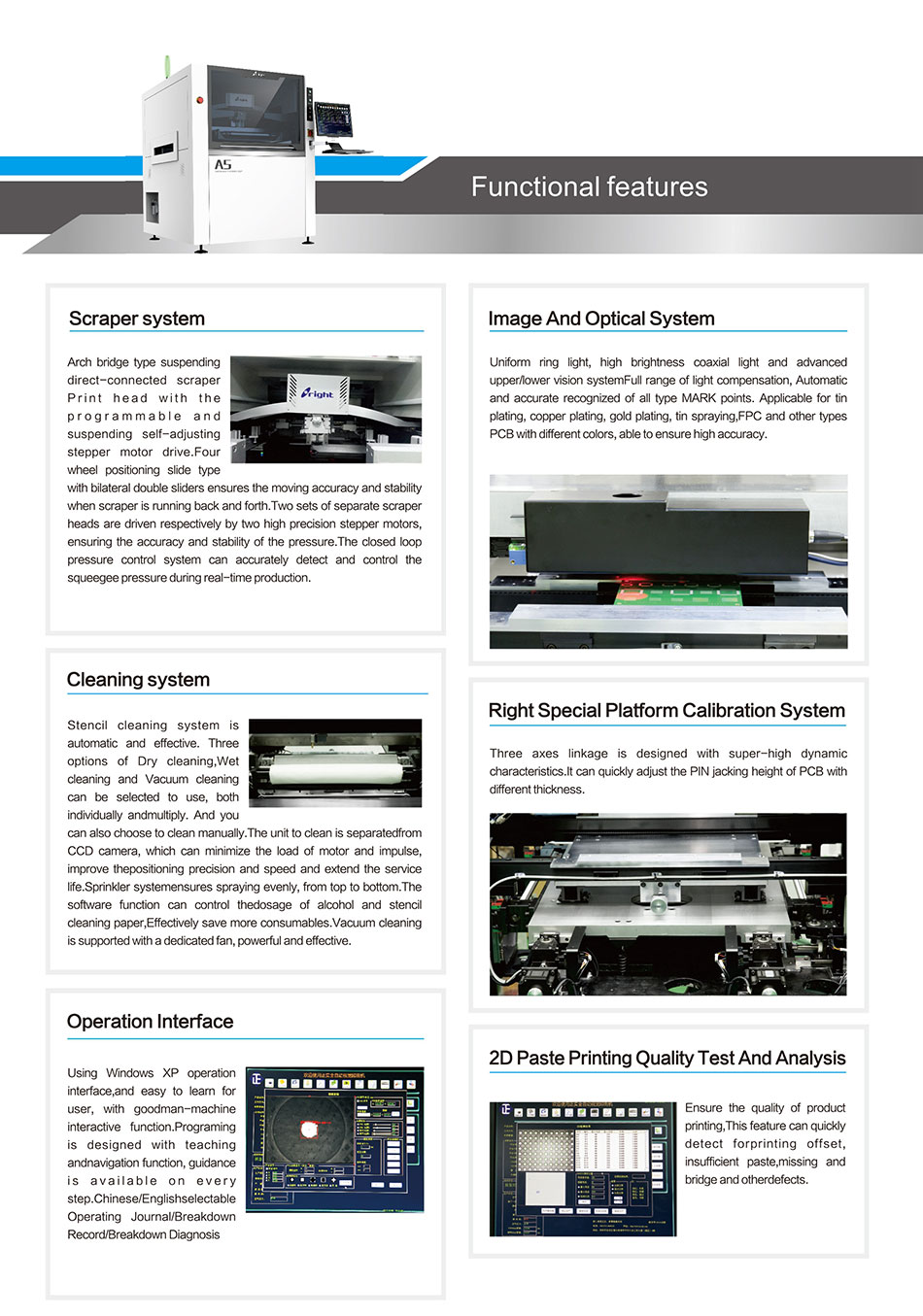

Main feathers:

● Humanized design
● Wide application range and strong versatility
● Unique sprinkler automatic cleaning system
● Efficient energy-saving wiping paper -saving structure
● Unique image processing system
● Intelligent printing production mode
● Printing range: 400*340mmm
● Use international universal UVW three axis linkage platform
● Machine dimension : 1220X1355X1500mm
● Machine option : automatic add solder paste function. automatic stencil inspection function .automatic dispensing system .squeegee pressure feedback function .automatic MSE/SPI online function .automatic constant temperature and humidity function

Frequently Asked Questions

Question: How fast does the automated stencil printer work compared to the manual type?

Answer: In a carefully controlled printing process, a typical automated stencil printer can work as fast as 1 to 8 inches per second. That would be an estimate of 45 seconds per board.

Question: Is it easy to use an automated stencil printer?

Answer: The automated stencil printer is very easy to use. It comes with an English user manual, so you should not have a hard time understanding the process. But just in case you have questions about it, you can always contact us directly so we can assist you.

Question: If I order the Automated Stencil Printer today, when will I get it?

Answer: We process orders very fast, especially for the automated stencil printer. If you are sure about what to get already, you can send us an email together with your shipping details and preferred payment option, so that we can send you an invoice.

Once payment is received from our end, we will make the final inspection on your order and ship it to you. The number of days for shipping would depend on your actual location. But normally, orders are received by our customers within 10 working days.

Question: I want to see how the automated stencil printer works first before ordering. Can you do this?

Answer: We can definitely do that. You have two options:

Option 1: You can visit our showroom here in Shenzhen China, so that our professional engineers and staff can show you how the automated stencil printer works.

Option 2: Request a video tutorial via email. The video tutorial should be enough to teach you how to work the automated stencil printer. If you still have further questions, you may contact us directly.

Question: Are the automated stencil printers long lasting?

Answer: The life of your automated stencil printer will highly depend on how you maintain it. You have to look at the user’s manual to check on the preventive maintenance check list so you would know when and how to clean and maintain your automated stencil printer. You will have to check all parts including vacuum filters, belts, bushings and the like and see if needs cleaning or replacement, to protect your printer as a whole.

Question: Do you only sell brand new Automated Stencil Printers? Or do you carry used ones too?

Answer: We also carry used automated stencil printers. If you want to check the lot that we have, kindly contact us directly via email, so we can send you the list and information.

If you cannot find the information you are looking for from the information above, please contact us directly so that we can assist you further. We will always find the answers to your questions.

Here at CNSMT, we assure you that you are always in good hands when it comes to all of your SMT needs and requirements. We will always find the best solution for you at the most competitive price.
