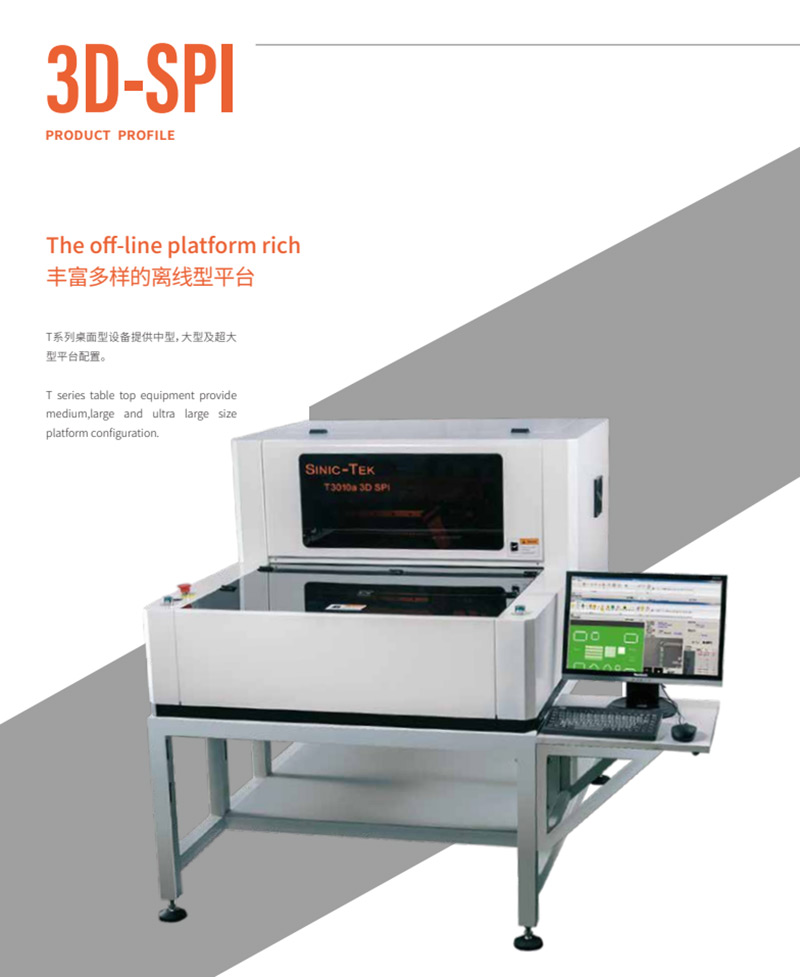

Offline Automatic SPI, Desktop solder paste inspection machine

This is a economy and high quality offline solder paste inspection system, in order to meet some of mid or small SMT factory, we developped this type of cost-effective SPI machine in the market

This offline SPI much more cheaper than inline, you only need less cost will get a automatic solder paste inspection machine for your SMT assembly line.

The Desktop SPI specification:

Feathers“

PMP modulation profile measurement technology

Using advanced phase profile modulation measurement technology (PMP), 8-bit grayscale resolution, reaching a detection resolution of 0.37 microns. Perform high-precision 3D and 2D measurement of solder paste printing.

Whole board inspection

Fully automatic whole board inspection and manual measurement capability. Automatically detect the volume, area, height, XY position of all solder pastes that need to be detected and automatically check for process defects such as missing printing, less tin, more tin, bridging, offset, bad shape, etc. Direct import supports Gerber Format (274x, 274d) format, manual Teach mode.

1. Provide detection accuracy and detection reliability.

2. Height accuracy: ±1um (calibration tool)

3. Repeatability: height less than 1um (4 σ) (calibration tool)

4. The volume is less than 1% (5 σ) (calibration tool)

5. Synchronous diffuse reflection technology (DL) completely solves the structural shadow and bright spot interference of solder paste.

6. Adopt 1.3 million pixel high-precision industrial digital camera and high-precision special industrial lens.

7. The integrated cast aluminum frame and marble base ensure the stability of the mechanical structure.

8. The precision servo motor and ball screw and guide rail ensure the excellent mechanical positioning accuracy of the equipment.

9. Gerber file import and manual Teach meet all user requirements.

10. Five-minute programming and one-button operation simplify the user's operation.

11. Intuitive dynamic monitoring function to monitor real-time detection and equipment status.

12. The detection speed is less than 2.5 seconds/FOV.
